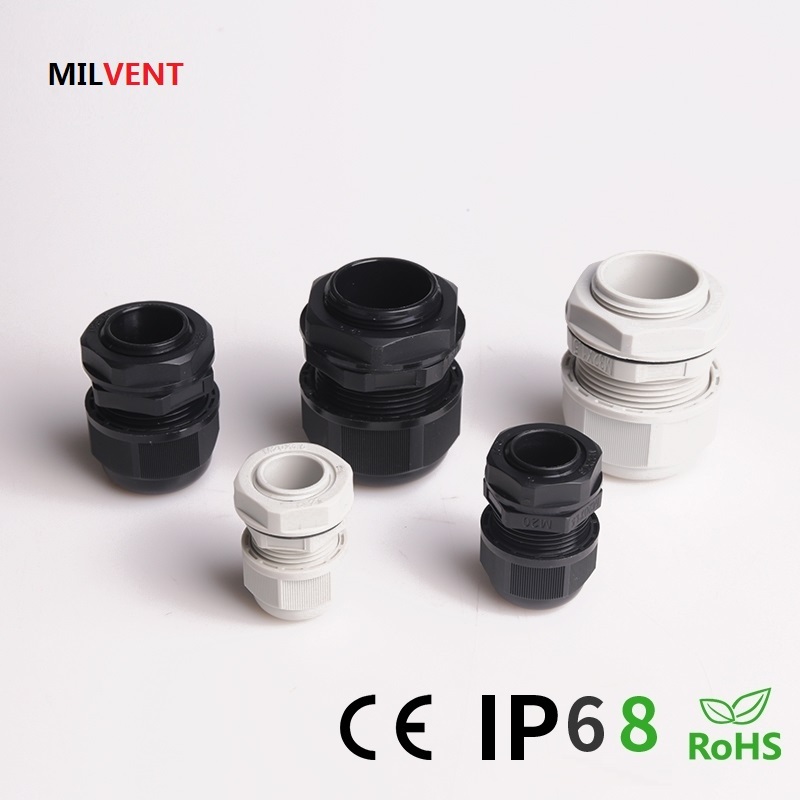

Nylon Cable Gland（Type B）

Product details

Thread：Metric, PG, G（PF),NPT thread

Material：UL approved nylon PA66 ( Flammability UL 94 V-2) for A, C, F parts .( Accept to make flammability UL 94V-0).

EPDM rubber for B, D parts (Also accept to make supper rubber: resist high temperature, resist strong acid/alkali,etc)

Protection degree：IP68-10

Wording temperature：-40℃-100℃ in static state, or instantaneous heat resistance up to 120℃; -20℃-80℃ in dynamic state,or instantaneous heat resistance up to 100℃.

Features：The claws and seals of excellent design, sealing nut have a click sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol,oil, grease and common solvency.

Colors：Black, gray, and other colors available upon request.

Chart


Thread	Item NO.	Cable Range	Thread O.D C1(mm)	Thread Length C2(mm)	Spanner Size	Std.PKG

		Ø(mm)			A&F(mm)	(PCS)
M8X1.5	MIL-MGB8-2.5	1-2.5	8	7.5	12/13	50
M8X1.5	MIL-MGB8-4.8	2-4.8	8	7.5	12/13	50
M10X1.5	MIL-MGB10-3	1-3	10	8	15/13	50
M10X1.5	MIL-MGB10-6	3-6	10	8	15/13	50
M12X1.5	MIL-MGB12S-3	1-3	12	8.5	18/15	50
	MIL-MGB12S-6	3-6.5	12	8.5	18/15	50
	MIL-MGB12SL-3	1-3	12	15	18/15	50
	MIL-MGB12SL-6	3-6.5	12	15	18/15	50
	MIL-MGB12-5	3-5.5	12	8.5	18/19	50
	MIL-MGB12-7	4-8	12	8.5	18/19	50
	MIL-MGB12L-5	3-5.5	12	15	18/19	50
	MIL-MGB12L-7	4-8	12	15	18/19	50
M16X1.5	MIL-MGB16S-5	3-5.5	16	10	22/19	50
	MIL-MGB16S-8	4-8	16	10	22/19	50
	MIL-MGB16SL-5	3-5.5	16	15	22/19	50
	MIL-MGB16SL-8	4-8	16	15	22/19	50
	MIL-MGB16-7	3-7	16	10	22/22	50
	MIL-MGB16-10	5-10	16	10	22/22	50
	MIL-MGB16L-7	3-7	16	15	22/22	50
	MIL-MGB16L-10	5-10	16	15	22/22	50
M18X1.5	MIL-MGB18-7	3-7	18	10	24/22	50
	MIL-MGB18-10	5-10	18	10	24/22	50
	MIL-MGB18L-7	3-7	18	15	24/22	50
	MIL-MGB18L-10	5-10	18	15	24/22	50
M20X1.5	MIL-MGB20M-7	3-7	20	10	27/22	50
	MIL-MGB20M-10	5-10	20	10	27/22	50
	MIL-MGB20S-9	5-9	20	10	27/24	50
	MIL-MGB20S-12.5	6-12.5	20	10	27/24	50
	MIL-MGB20SL-9	5-9	20	15	27/24	50
	MIL-MGB20SL-12.5	6-12.5	20	15	27/24	50
	MIL-MGB20-11	5-11	20	11	27/27	50
	MIL-MGB20-13.5	9-14	20	11	27/27	50
	MIL-MGB20L-11	5-11	20	15	27/27	50
	MIL-MGB20L-13.5	9-14	20	15	27/27	50
M22X1.5	MIL-MGB22-11	6-11	22	11	30/27	50
M22X1.5	MIL-MGB22-13.5	9-14	22	11	30/27	50
M24X1.5	MIL-MGB24-11	5-11	24	11	30/27	50
M24X1.5	MIL-MGB24-14	9-14	24	11	30/27	50
M25X1.5	MIL-MGB25S-11	5-11	25	11.6	33/27	50
	MIL-MGB25S-14	9-14	25	11.6	33/27	50
	MIL-MGB25-13	7-13	25	11.6	33/33	50
	MIL-MGB25-18	13-18	25	11.6	33/33	50
	MIL-MGB25L-13	7-13	25	15	33/33	50
	MIL-MGB25L-18	13-18	25	15	33/33	50
M32X1.5	MIL-MGB32-17.5	13-17.5	32	15	41/42	20
M32X1.5	MIL-MGB32-25	18-25	32	15	41/42	20
M36X1.5	MIL-MGB36-17.5	13-17.5	36	12	45/42	20
M36X1.5	MIL-MGB36-25	18-25	36	12	45/42	20
M40X1.5	MIL-MGB40-25	18-25	40	15	50/52	10
M40X1.5	MIL-MGB40-31	26-31	40	15	50/52	10
M50X1.5	MIL-MGB50-32	25-32	50	15	62/62	10
M50X1.5	MIL-MGB50-41	30-41	50	15	62/62	10
M63X1.5	MIL-MGB63-41	29-38	63	18	75/65	10
M63X1.5	MIL-MGB63-45	35-45	63	18	75/65	10
PG7	MIL-PGB7S-3	1-3	12.5	8	17/15	50
	MIL-PGB7S-6	3-6.5	12.5	8	17/15	50
	MIL-PGB7SL-3	1-3	12.5	15	17/15	50
	MIL-PGB7SL-6	3-6.5	12.5	15	17/15	50
	MIL-PGB7-5	3-5.5	12.5	8	17/19	50
	MIL-PGB7-7	4-8	12.5	8	17/19	50
PG9	MIL-PGB9-5.5	3-5.5	15.2	8.2	22/19	50
	MIL-PGB9-7.5	4-8	15.2	8.2	22/19	50
	MIL-PGB9L-5.5	3-5.5	15.2	15	22/19	50
	MIL-PGB9L-7.5	4-8	15.2	15	22/19	50
PG11	MIL-PGB11-7	3-7	18.6	10	24/22	50
	MIL-PGB11-10	5-10	18.6	10	24/22	50
	MIL-PGB11L-7	3-7	18.6	15	24/22	50
	MIL-PGB11L-10	5-10	18.6	15	24/22	50
PG13.5	MIL-PGB13.5-9	5-9	20.4	10	27/24	50
	MIL-PGB13.5-12.5	6-12.5	20.4	10	27/24	50
	MIL-PGB13.5L-9	5-9	20.4	15	27/24	50
	MIL-PGB13.5L-12.5	6-12.5	20.4	15	27/24	50
PG16	MIL-PGB16-11	5-11	22.5	10.8	30/27	50
	MIL-PGB16-14	9-14	22.5	10.8	30/27	50
	MIL-PGB16L-11	5-11	22.5	15	30/27	50
	MIL-PGB16L-14	9-14	22.5	15	30/27	50
PG19	MIL-PGB19-11	5-11	24	11	30/27	50
PG19	MIL-PGB19-14	9-14	24	11	30/27	50
PG21	MIL-PGB21-13	7-13	28.3	12	36/33	50
	MIL-PGB21-17.5	12.5-18	28.3	12	36/33	50
	MIL-PGB21L-13	7-13	28.3	15	36/33	50
	MIL-PGB21L-17.5	12.5-18	28.3	15	36/33	50
PG25	MILS-PGB25-20	14-20	30	13	36/37	50
PG29	MIL-PGB29-17.5	13-17.5	37	12	46/41	20
PG29	MIL-PGB29-25	17-25	37	12	46/41	20
PG36	MIL-PGB36-25.5	17-25.5	47	15	57/52	10
PG36	MIL-PGB36-31	24-32	47	15	57/52	10
PG42	MIL-PGB42-32	25-32	54	15	64/62	10
PG42	MIL-PGB42-41	30-41	54	15	64/62	10
PG48	MIL-PGB48-38	29-38	59.3	18.2	70/65	10
PG48	MIL-PGB48-45	39-45	59.3	18.2	70/65	10
G(PF)1/4"	MIL-GB1/4-5	3-5.5	13.157	8.5	19/19	50
G(PF)1/4"	MIL-GB1/4-8	4-8	13.157	8.5	19/19	50
G(PF)3/8"	MIL-GB3/8-7	3-7	16.662	10	22/22	50
G(PF)3/8"	MIL-GB3/8-10	5-10	16.662	10	22/22	50
G(PF)1/2"	MIL-GB1/2-9	5-9	20.955	10	27/24	50
G(PF)1/2"	MIL-GB1/2-12.5	6-12.5	20.955	10	27/24	50
G(PF)3/4"	MIL-GB3/4-13	7--13	26.441	12	36/33	50
G(PF)3/4"	MIL-GB3/4-18	13-18	26.441	12	36/33	50
G(PF)1"	MIL-GB1-17.5	13-17.5	33.249	15	46/41	20
G(PF)1"	MIL-GB1-25	17-25	33.249	15	46/41	20
G(PF)1 1/4"	MIL-GB1 1/4-25.5	17-25.5	41.91	15	57/52	10
G(PF)1 1/4"	MIL-GB1 1/4-31	24-31	41.91	15	57/52	10
G(PF)1 1/2"	MIL-GB1 1/2-32	25-32	48	16	60/62	10
G(PF)1 1/2"	MIL-GB1 1/2-41	30-41	48	16	60/62	10
NPT1/4"	MIL-NPTB1/4-5.5	3-5.5	13.157	8.5	19	50
NPT1/4"	MIL-NPTB1/4-8	4-8	13.157	8.5	19	50
NPT3/8"	MIL-NPTB3/8-7	3-7	16.662	10	22	50
NPT3/8"	MIL-NPTB3/8-10	5-10	16.662	10	22	50
NPT1/2"	MIL-NPTB1/2-9	5-9	20.955	10	24	50
NPT1/2"	MIL-NPTB1/2-13	6-12.5	20.955	10	24	50
NPT3/4"	MIL-NPTB3/4-13	7-13	26.441	15	33	50
NPT3/4"	MIL-NPTB3/4-18	12.5-18	26.441	15	33	50
NPT1"	MIL-NPTB1-17.5	13-17.5	33.249	15	41	20
NPT1"	MIL-NPTB1-25	17-25	33.249	15	41	20
NPT1 1/4"	MIL-NPT1 1/4-25.5	17-25.5	41.91	15	52	20
NPT1 1/4"	MIL-NPT1 1/4-31	24-32	41.91	15	52	20
