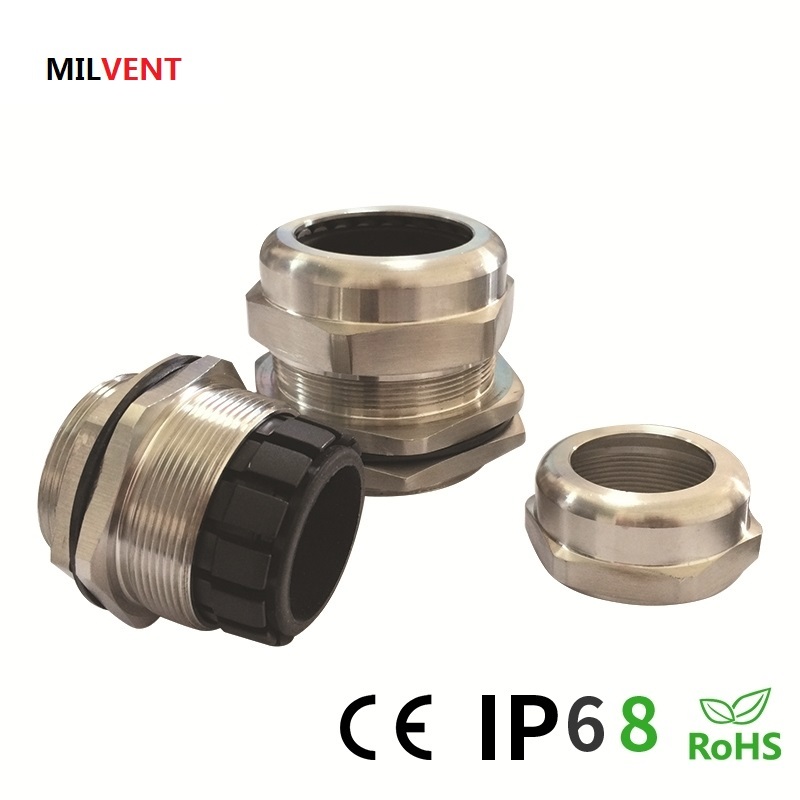

Stainless Steel Cable Glands
Product details
Thread：Metric,,PG, G(PF), NPT
Material: (304/316) stainless steel for A.C. F parts. EPDM for seal and sealing washer. UL approved nylon PA66 for claws.
Protection degree: IP68
Working temperature: -40℃-100℃, short time up to 120℃. ( can be ordered -60℃-220℃)
Features：The claws and seals of excellent design, sealing nut have a click sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol,oil, grease and common solvency.
Chart
| Thread | Item NO. | Cable Range | Thread O.D C1(mm) | Panel Mounting Hole(mm) | Thread Length | Spanner Size |
| Ø(mm) | C2(mm) | A&F(mm) | ||||
| M8X1.25 | MIL-MG8-2 | 1-2.3 | 8 | 8-8.3 | 5.5 | 11/11 |
| MIL-MG8-3 | 2.3-3.8 | 8 | 8-8.3 | 5.5 | 11/11 | |
| MIL-MG8-5 | 3.5-5 | 8 | 8-8.3 | 5.5 | 11/11 | |
| M10X1.5 | MIL-MG10-3 | 2-3.5 | 10 | 10-10.3 | 6 | 13/13 |
| MIL-MG10-5 | 3.5-5.3 | 10 | 10-10.3 | 6 | 13/13 | |
| MIL-MG10-6 | 4.8-6.3 | 10 | 10-10.3 | 6 | 13/13 | |
| M12X1.5 | MIL-MG12-5 | 3-5.3 | 12 | 12-12.3 | 8 | 17/17 |
| MIL-MG12-8 | 4.5-8 | 12 | 12-12.3 | 8 | 17/17 | |
| M16X1.5 | MIL-MG16-6 | 4-7 | 16 | 16-16.3 | 9 | 22/22 |
| MIL-MG16-10 | 6-10 | 16 | 16-16.3 | 9 | 22/22 | |
| M20X1.5 | MIL-MG20M-8 | 5-8.8 | 20 | 20-20.3 | 9.5 | 24/24 |
| MIL-MG20M-11 | 7-12 | 20 | 20-20.3 | 9.5 | 24/24 | |
| MIL-MG20-10 | 6-11 | 20 | 20-20.3 | 9.5 | 26/26 | |
| MIL-MG20-13 | 9-14 | 20 | 20-20.3 | 9.5 | 26/26 | |
| M25X1.5 | MIL-MG25-16 | 10-16 | 25 | 25-25.4 | 12 | 32/32 |
| MIL-MG25-18 | 13-18 | 25 | 25-25.4 | 12 | 32/32 | |
| M32X1.5 | MIL-MG32-22 | 15-22 | 32 | 32-32.4 | 12.5 | 41/41 |
| MIL-MG32-25 | 18-25 | 32 | 32-32.4 | 12.5 | 41/41 | |
| M40X1.5 | MIL-MG40-25 | 20-25 | 40 | 40-40.4 | 15 | 50/50 |
| MIL-MG40-30 | 24-30 | 40 | 40-40.4 | 15 | 50/50 | |
| M50X1.5 | MIL-MG50-32 | 26-32 | 50 | 50-50.4 | 15 | 60/60 |
| MIL-MG50-39 | 30-40 | 50 | 50-50.4 | 15 | 60/60 | |
| M63X1.5 | MIL-MG63-46 | 38-46 | 63 | 63-63.4 | 15 | 73/73 |
| MIL-MG63-49 | 40-50 | 63 | 63-63.4 | 15 | 73/73 | |
| PG7 | MIL-PG7-5 | 3-5.3 | 12.5 | 12.5-12.8 | 8 | 17/17 |
| MIL-PG7-8 | 4.5-8 | 12.5 | 12.5-12.8 | 8 | 17/17 | |
| PG9 | MIL-PG9-5 | 3-5.3 | 15.2 | 15.2-15.5 | 8 | 18/17 |
| MIL-PG9-8 | 4.5-8 | 15.2 | 15.2-15.5 | 8 | 18/17 | |
| PG11 | MIL-PG11-6 | 4-7 | 18.6 | 18.6-18.9 | 9 | 22/22 |
| MIL-PG11-10 | 5-10 | 18.6 | 18.6-18.9 | 9 | 22/22 | |
| PG13.5 | MIL-PG13.5-8 | 5-8.8 | 20.4 | 20.4-20.7 | 9.5 | 24/24 |
| MIL-PG13.5-11 | 7-12 | 20.4 | 20.4-20.7 | 9.5 | 24/24 | |
| PG16 | MIL-PG16-10 | 6-11 | 22.5 | 22.5-22.8 | 9.5 | 26/26 |
| MIL-PG16-13 | 9-14 | 22.5 | 22.5-22.8 | 9.5 | 26/26 | |
| PG21 | MIL-PG21-16 | 10-16 | 28.3 | 28.3-28.7 | 12 | 32/32 |
| MIL-PG21-18 | 13-18 | 28.3 | 28.3-28.7 | 12 | 32/32 | |
| PG29 | MIL-PG29-22 | 13-22 | 37 | 37-37.4 | 12.5 | 41/41 |
| MIL-PG29-25 | 18-25 | 37 | 37-37.4 | 12.5 | 41/41 | |
| PG36 | MIL-PG36-25 | 20-25 | 47 | 47-47.4 | 15 | 50/50 |
| MIL-PG36-30 | 24-30 | 47 | 47-47.4 | 15 | 50/50 | |
| G(PF)1/4" | MIL-G1/4-5 | 3-5.3 | 13.1 | 13.1-13.4 | 8 | 17/17 |
| MIL-G1/4-8 | 4.5-8 | 13.1 | 13.1-13.4 | 8 | 17/17 | |
| G(PF)3/8" | MIL-G3/8-6 | 4-7 | 16.6 | 16.6-16.9 | 9 | 22/22 |
| MIL-G3/8-10 | 6-10 | 16.6 | 16.6-16.9 | 9 | 22/22 | |
| G(PF)1/2" | MIL-G1/2-10 | 6-11 | 20.9 | 20.9-21.2 | 9.5 | 26/26 |
| MIL-G1/2-13 | 9-14 | 20.9 | 20.9-21.2 | 9.5 | 26/26 | |
| G(PF)3/4" | MIL-G3/4-16 | 10-16 | 26.4 | 26.4-26.8 | 12 | 32/32 |
| MIL-G3/4-18 | 13-18 | 26.4 | 26.4-26.8 | 12 | 32/32 | |
| G(PF)1" | MIL-G1-22 | 15-22 | 33.2 | 33.2-33.6 | 12.5 | 41/41 |
| MIL-G1-25 | 18-25 | 33.2 | 33.2-33.6 | 12.5 | 41/41 | |
| G(PF)1 1/4" | MIL-G1 1/4-25 | 20-25 | 41.9 | 41.9-42.3 | 15 | 50/50 |
| MIL-G1 1/4-30 | 24-30 | 41.9 | 41.9-42.3 | 15 | 50/50 | |
| G(PF)1 1/2" | MIL-G1 1/2-32 | 26-32 | 48 | 48-48.4 | 15 | 50/50 |
| MIL-G1 1/2-39 | 30-40 | 48 | 48-48.4 | 15 | 50/50 | |
| G(PF) 2" | MIL-G2-46 | 38-46 | 60 | 60-60.4 | 15 | 60/60 |
| MIL-G2-49 | 40-50 | 60 | 60-60.4 | 15 | 60/60 | |
| NPT3/8" | MIL-NPT3/8-6 | 4-7 | 17.1 | 9 | 22 | |
| MIL-NPT3/8-10 | 6-10 | 17.1 | 9 | 22 | ||
| NPT1/2" | MIL-NPT1/2-10 | 6-11 | 21.3 | 9.5 | 26 | |
| MIL-NPT1/2-13 | 9-14 | 21.3 | 9.5 | 26 | ||
| NPT3/4" | MIL-NPT3/4-16 | 10-16 | 26.6 | 12 | 32 | |
| MIL-NPT3/4-18 | 13-18 | 26.6 | 12 | 32 | ||
| NPT1" | MIL-NPT1-22 | 15-22 | 33.5 | 12.5 | 41 | |
| MIL-NPT1-25 | 18-25 | 33.5 | 12.5 | 41 | ||
| NPT1 1/4" | MIL-NPT1 1/4-25 | 20-25 | 42.2 | 15 | 50 | |
| MIL-NPT1 1/4-30 | 24-30 | 42.2 | 15 | 50 |
