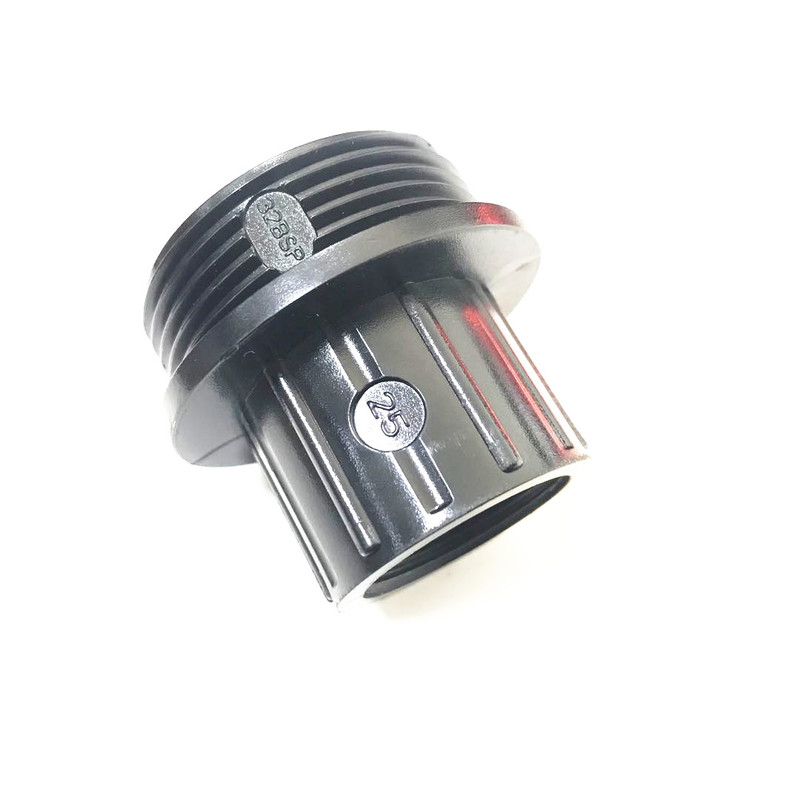

BSP / Metric Screwed Converters, Male 32BSP Female 25mm
Product details
Material：UL approved nylon PA66 ( Flammability UL 94 V-2)
Features: Transform different thread O.D. Also, the products can be ordered as customers’ request.
Chart
Item NO. | External Thread | Inner Thread | Thread Length L(mm) | Thread Length L1(mm) | Width W(mm) |
MG16-MG12 MG16-MG1210 | M16X1.5 | M12X1.5 M12x1.0 | 8 | 12 | 22 |
MG20-MG16 | M20X1.5 | M16X1.5 | 8 | 12 | 24.2 |
MG25-MG20 | M25X1.5 | M20X1.5 | 10 | 15 | 29 |
MG32-MG25 | M32X1.5 | M25X1.5 | 10 | 15 | 35.9 |
MG40-MG32 | M40X1.5 | M32X1.5 | 10 | 15 | 45.8 |
MG50-MG40 | M50X1.5 | M40X1.5 | 11.5 | 15 | 55 |
MG63-MG50 | M63X1.5 | M50X1.5 | 11.5 | 16 | 67.5 |
32BSP-M25x1.5 32BSP M25x1.5
