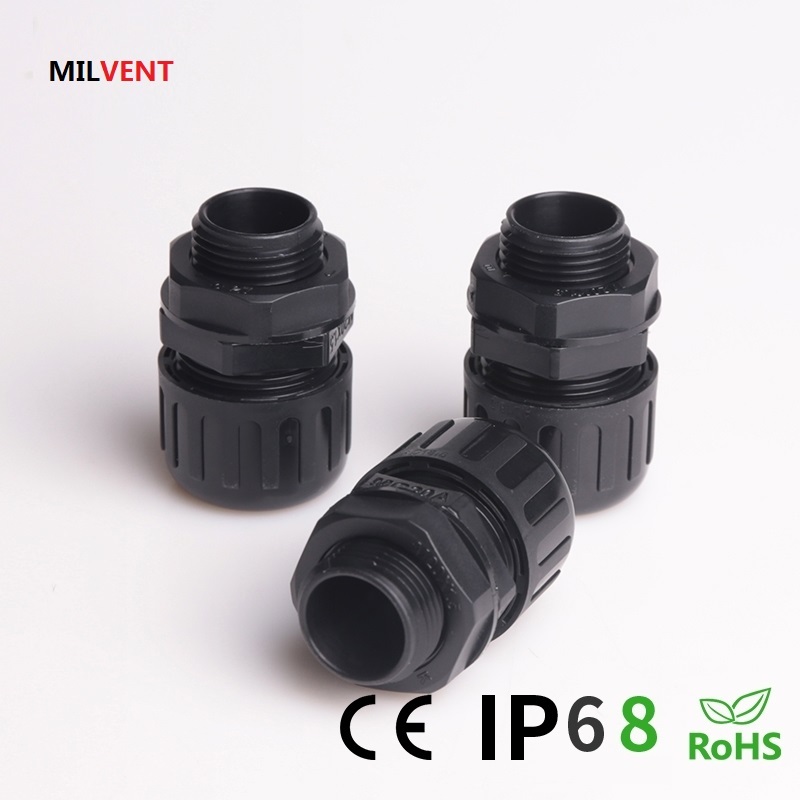

Watertight Corrugated Tubing Fitting
Product details
Thread: Metric, PG, G(PF), NPT
Materials: UL approved and halogen-free nylon PA66(Flammability UL94V-2) for A.C.F parts. EPDM rubber for B. D parts.
(Accept to order super rubber: high temperature resistance, strong acid/alkali, etc)
Wording temperature：-40℃-100℃
Protection Degree: IP68-10
Features：This products has the best power for the water compression force from any angle which can keep 100% waterproof and airtight function.
Colors：Black, gray, and other colors available upon request.
Chart
| Product parameters | |||||
| Accommodated Pipes | Thread | Item NO. | Thread Diameter AG(mm) | Thread Length GL(mm) | Std Pkg(PCS) |
| AD10 | M12X1.5 | MIL-MG12-10 | 12 | 9 | 50 |
| PG7 | MIL-PG7-10 | 12.5 | 9 | 50 | |
| PG9 | MIL-PG9-10 | 15.2 | 9 | 50 | |
| G(PF)1/4" | MIL-G1/4-10 | 13.1 | 9 | 50 | |
| AD13 | M16X1.5 | MIL-MG16-13 | 16 | 10 | 50 |
| PG11 | MIL-PG11-13 | 18.6 | 10 | 50 | |
| G(PF)3/8" | MIL-G3/8-13 | 16.6 | 15 | 50 | |
| AD15.8 | M16X1.5 | MIL-MG16-15.8 | 16 | 10 | 50 |
| M20X1.5 | MIL-MG20-15.8 | 20 | 12.5 | 50 | |
| M22X1.5 | MIL-MG22-15.8 | 22 | 15 | 50 | |
| PG13.5 | MIL-PG13.5-15.8 | 20.4 | 10 | 50 | |
| G(PF)1/2" | MIL-G1/2-15.8 | 20.9 | 15 | 50 | |
| AD18.5 | M16X1.5 | MIL-MG16-18.5 | 16 | 10 | 50 |
| M20X1.5 | MIL-MG20-18.5 | 20 | 12.5 | 50 | |
| M22X1.5 | MIL-MG22-18.5 | 22 | 12.5 | 50 | |
| PG13.5 | MIL-PG13.5-18.5 | 20.4 | 10 | 50 | |
| PG16 | MIL-PG16-18.5 | 22.5 | 10.8 | 50 | |
| G(PF)1/2" | MIL-G1/2-18.5 | 20.9 | 15 | 50 | |
| AD21.2 | M20X1.5 | MIL-MG20-21.2 | 20 | 13 | 50 |
| M25X1.5 | MIL-MG25-21.2 | 25 | 13 | 50 | |
| PG16 | MIL-PG16-21.2 | 22.5 | 13 | 50 | |
| PG21 | MIL-PG21-21.2 | 28.3 | 13 | 50 | |
| G(PF)1/2" | MIL-G1/2-21.2 | 20.9 | 15 | 50 | |
| G(PF)3/4" | MIL-G3/4-21.2 | 26.4 | 15 | 50 | |
| AD25 | M25X1.5 | MIL-MG25-25 | 25 | 13 | 50 |
| PG21 | MIL-PG21-25 | 28.3 | 13 | 50 | |
| G(PF)3/4" | MIL-G3/4-25 | 26.4 | 15 | 50 | |
| AD28.5 | M25X1.5 | MIL-MG25-28.5 | 25 | 13 | 50 |
| PG21 | MIL-PG21-28.5 | 28.3 | 13 | 50 | |
| G(PF)3/4" | MIL-G3/4-28.5 | 26.4 | 15 | 50 | |
| AD34.5 | M32X1.5 | MIL-MG32-34.5 | 32 | 14 | 20 |
| PG29 | MIL-PG29-34.5 | 37 | 13 | 20 | |
| G(PF)1" | MIL-G1-34.5 | 33.2 | 15 | 20 | |
| AD42.5 | M40X1.5 | MIL-MG40-42.5 | 40 | 15 | 10 |
| M50X1.5 | MIL-MG50-42.5 | 50 | 15 | 10 | |
| PG36 | MIL-PG36-42.5 | 47 | 13 | 10 | |
| PG42 | MIL-PG42-42.5 | 54 | 16 | 10 | |
| G(PF)1 1/4" | MIL-G1 1/4-42.5 | 41.9 | 15 | 10 | |
| G(PF)1 1/2" | MIL-G1 1/2-42.5 | 18 | 15 | 10 | |
| AD48.5 | M50X1.5 | MIL-MG50-48.5 | 50 | 15 | 10 |
| PG42 | MIL-PG42-48.5 | 54 | 16 | 10 | |
| AD54.5 | M63X1.5 | MIL-MG63-54.5 | 63 | 16 | 5 |
| PG48 | MIL-PG48-54.5 | 59.3 | 16 | 5 | |
| G(PF)2" | MIL-G2-54.5 | 60 | 15 | 5 | |
