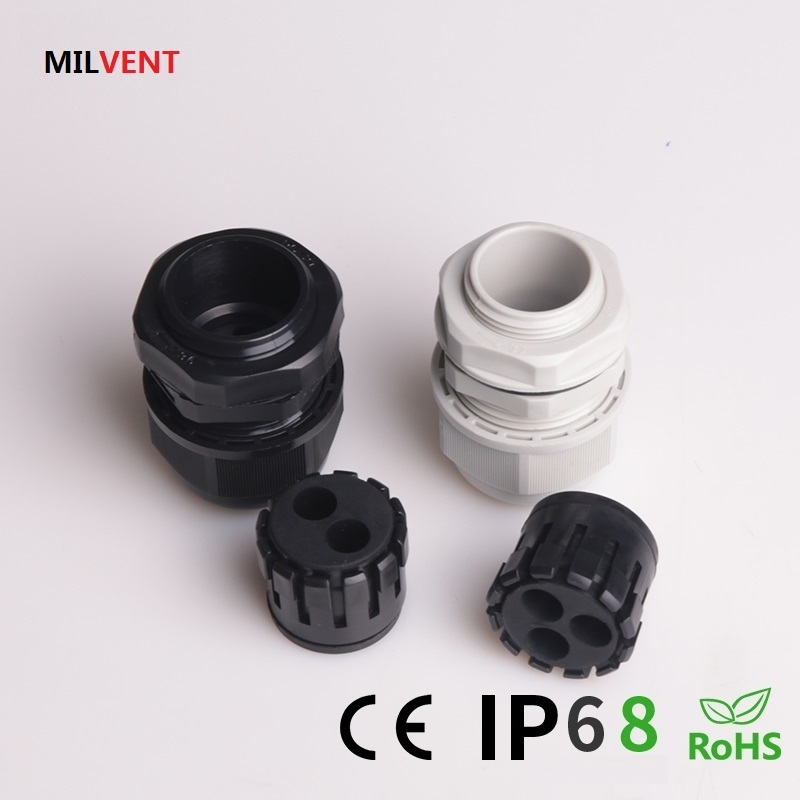

Mutiple Holes & Flat Hole Nylon Cable Gland

  •               Product details

Thread：Metric, PG, G（PF)

Material：UL approved nylon PA66 ( Flammability UL 94 V-2) for A, C, E, F parts .( Accept to make flammability UL 94V-0).

EPDM rubber for B, D parts (Also accept to make supper rubber: resist high temperature, resist strong acid/alkali,etc)

Protection degree：IP68-10

Wording temperature：-40℃-100℃ in static state, or instantaneous heat resistance up to 120℃; -20℃-80℃ in dynamic state,or instantaneous heat resistance up to 100℃.

Features：The claws and seals of excellent design, sealing nut have a click sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol,oil, grease and common solvency.

Colors：Black, gray, and other colors available upon request.


Seal Holes

Item NO.

Cable Range

Ø(mm)

Thread O.D

C1(mm)

Thread Length

C2(mm)

Spanner Size

A&F(mm)


MGA12-H2-03

1.2-3

12

8.5

18/19

MGA16-H2-04

1.5-4

16

15

22/22

MGA20-H2-06

3-6

20

15

27/27

MGA22-H2-06

3-6

22

10

27/27

MGA25-H2-6.5

3-6.5

25

15

33/33

MGA25-H2-08

4-8

25

15

33/33

MGA32-H2-10

5-10

32

15

41/42

MGA40-H2-13

7-13

40

20

50/52


PGA7-H2-03

1.2-3

12.5

8.5

17/19

PGA9-H2-03

1.2-3

15.2

8.5

22/19

PGA11-H2-04

1.5-4

18.6

10

24/22

PGA13.5-H2-05

2-5

20.4

10

27/24

PGA16-H2-06

3-6

22.5

10.8

30/27

PGA21-H2-6.5

3-6.5

28.3

12

36/33

PGA21-H2-08

4-8

28.3

12

36/33

PGA29-H2-10

6-10

37

12

46/41

PGA36-H2-13

7-13

47

14

57/52


GA1/4-H2-03

1.2-3

13.157

8

19/19

GA3/8-H2-04

1.5-4

16.662

15

22/22

GA1/2-H2-06

3-6

20.995

15

27/27

GA1/2-H2-6.5

3-6.5

20.995

15

27/33

GA1/2-H2-08

4-8

20.995

15

27/33

GA3/4-H2-6.5

3-6.5

26.441

15

36/33

GA3/4-H2-08

4-8

26.441

15

36/33

GA1 1/4-H2-13

7-13

41.91

16

57/52


MGA12-H3-2.6

1-2.6

12

8.5

18/19

MGA16-H3-04

1.5-4

16

15

22/22

MGA20S-H3-05

2-5

20

10

24/24

MGA20-H3-05

2-5

20

15

27/27

MGA22-H3-05

2-5

22

10

27/27

MGA25-H3-05

2-5

25

15

33/33

MGA25-H3-08

4-8

25

15

33/33

MGA32-H3-10

6-10

32

15

41/42

MGA40-H3-11

7-11

40

20

50/52

MGA50-H3-12

7-12

50

22

62/62

MGA63-H3-13

8-13

63

25

75/75


PGA7-H3-2.6

1-2.6

12.5

8.5

17/19

PGA9-H3-2.6

1-2.6

15.2

8.5

22/19

PGA11-H3-04

1.5-4

18.6

10

24/22

PGA13.5-H3-05

2-5

20.4

10

27/24

PGA16-H3-05

2-5

22.5

10.8

30/27

PGA21-H3-05

2-5

28.3

12

36/33

PGA21-H3-08

4-8

28.3

12

36/33

PGA29-H3-10

6-10

37

12

46/41

PGA36-H3-11

7-11

47

14

57/52

PGA42-H3-12

7-12

54

15

64/62

PGA48-H3-13

8-13

59.3

18

70/65


GA1/4-H3-2.6

1-2.6

13.157

8

19/19

GA3/8-H3-04

1.5-4

16.662

15

22/22

GA1/2-H3-05

2-5

20.995

15

27/27

GA1/2-H3-05

2-5

20.995

15

27/33

GA1/2-H3-08

4-8

20.995

15

27/33

GA3/4-H3-05

2-5

26.441

15

36/33

GA3/4-H3-08

4-8

26.441

15

36/33

GA1 1/4-H3-11

7-11

41.91

16

57/52

GA1 1/2-H3-12

7-12

48

22

60/62

GA2-H3-13

8-13

60

25

75/75


MGA12-H4-2.3

1-2.3

12

8.5

18/19

MGA16-H4-3.2

1-3.2

16

15

22/22

MGA20S-H4-04

1.5-4

20

10

24/24

MGA20-H4-2.5

1-2.5

20

15

27/27

MGA20-H4-3.5

1-3.5

20

15

27/27

MGA20-H4-4.5

2-4.5

20

15

27/27

MGA22-H4-2.5

1-2.5

22

15

27/27

MGA22-H4-3.5

1-3.5

22

15

27/27

MGA22-H4-4.5

2-4.5

22

15

27/27

MGA25-H4-05

2-5

25

15

33/33

MGA25-H4-06

3-6

25

15

33/33

MGA25-H4-07

3-7

25

15

33/33

MGA25-H4-08

4-8

25

15

33/33

MGA25-H4-09

5-9

25

15

33/33

MGA2-H4-07

3-7

32

15

41/42

MGA32-H4-09

5-9

32

15

41/42

MGA40-H4-11

7-11

40

20

50/52

MGA40-H4-12

7-12

40

20

50/52


PGA7-H4-2.3

1-2.3

12.5

8.5

17/19

PGA9-H4-2.3

1-2.3

15.2

8.5

22/19

PGA11-H4-3.2

1-3.2

18.6

10

24/22

PGA13.5-H4-04

1.5-4

20.4

10

27/24

PGA16-H4-2.5

1-2.5

22.5

10.8

30/27

PGA16-H4-3.5

1-3.5

22.5

10.8

30/27

PGA16-H4-4.5

2-4.5

22.5

10.8

30/27

PGA21-H4-05

2-5

28.3

12

36/33

PGA21-H4-06

3-6

28.3

12

36/33

PGA21-H4-07

3-7

28.3

12

36/33

PGA21-H4-08

4-8

28.3

12

36/33

PGA21-H4-09

5-9

28.3

12

36/33

PGA29-H4-07

3-7

37

12

46/41

PGA29-H4-09

5-9

37

12

46/41

PGA36-H4-11

7-11

47

14

57/52

PGA36-H4-12

7-12

47

14

57/52


GA1/4-H4-2.3

1-2.3

13.157

8

19/19

GA3/8-H4-3.2

1-3.2

16.662

15

22/22

GA1/2-H4-2.5

1-2.5

20.995

15

27/27

GA1/2-H4-3.5

1-3.5

20.995

15

27/27

GA1/2-H4-4.5

2-4.5

20.995

15

27/27

GA1/2-H4-05

2-5

20.995

15

27/33

GA1/2-H4-06

3-6

20.995

15

27/33

GA1/2-H4-07

3-7

20.995

15

27/33

GA1/2-H4-08

4-8

20.995

15

27/33

GA1/2-H4-09

5-9

20.995

15

27/33

GA3/4-H4-05

2-5

26.441

15

36/33

GA/4-H4-06

3-6

26.441

15

36/33

GA3/4-H4-07

3-7

26.441

15

36/33

GA3/4-H4-08

4-8

26.441

15

36/33

GA3/4-H4-09

5-9

26.441

15

36/33

GA1 1/4-H4-11

7-11

41.91

16

57/52

GA1 1/4-H4-12

7-12

41.91

16

57/52


MGA20-H5-03

1-3

20

15

27/27

MGA22-H5-03

1-3

22

10

27/27

MGA25-H5-06

3-6

25

15

33/33

MGA32-H5-08

4-8

32

15

41/42

PGA16-H5-03

1-3

22.5

10.8

30/27

PGA21-H5-06

3-6

28.3

12

36/33

PGA29-H5-08

4-8

37

12

46/41

GA1/2-H5-03

1-3

20.995

15

27/27

GA1/2-H5-06

3-6

20.995

15

27/33

GA3/4-H5-06

3-6

26.441

15

33/33


MGA16A-H6-2.1

1-2.1

16

15

22/22

MGA25A-H6-5.3

2-5.3

25

15

33/33

MGA32A-H6-5.5

2-5.5

32

15

41/42

MGA32A-H6-07

3-7

32

15

41/42

MGA63A-H6-12

7-12

63

25

75/75

PGA11-H6-2.1

1-2.1

18.6

10

24/22

PGA21-H6-5.3

2-5.3

28.3

12

36/33

PGA29-H6-5.5

2-5.5

37

12

46/41

PGA29-H6-07

3-7

37

12

46/41

PGA48-H6-12

7-12

59.3

18

70/65

GA3/8-H6-2.1

1-2.1

16.662

15

22/22

GA1/2-H6-5.3

2-5.3

20.995

15

27/33

GA3/4-H6-5.3

2-5.3

26.441

15

33/33

GA2-H6-12

7-12

60

25

75/75


MGA25-H7-4.3

2-4.3

25

15

33/33

PGA21-H7-4.3

2-4.3

28.3

12

36/33

GA1/2-H7-4.3

2-4.3

20.995

15

27/33

GA3/4-H7-4.3

2-4.3

26.441

15

33/33


MGA25-H8-04

1.5-4

25

15

33/33

PGA21-H8-04

1.5-4

28.3

12

36/33

GA1/2-H8-04

1.5-4

20.995

15

27/33

GA3/4-H8-04

1.5-4

26.441

15

33/33


MGA10-0306

03*06

10

8

15/13

MGA25-0614

06*14

25

15

33/33

MGA32-0519

05*19

32

15

41/42
